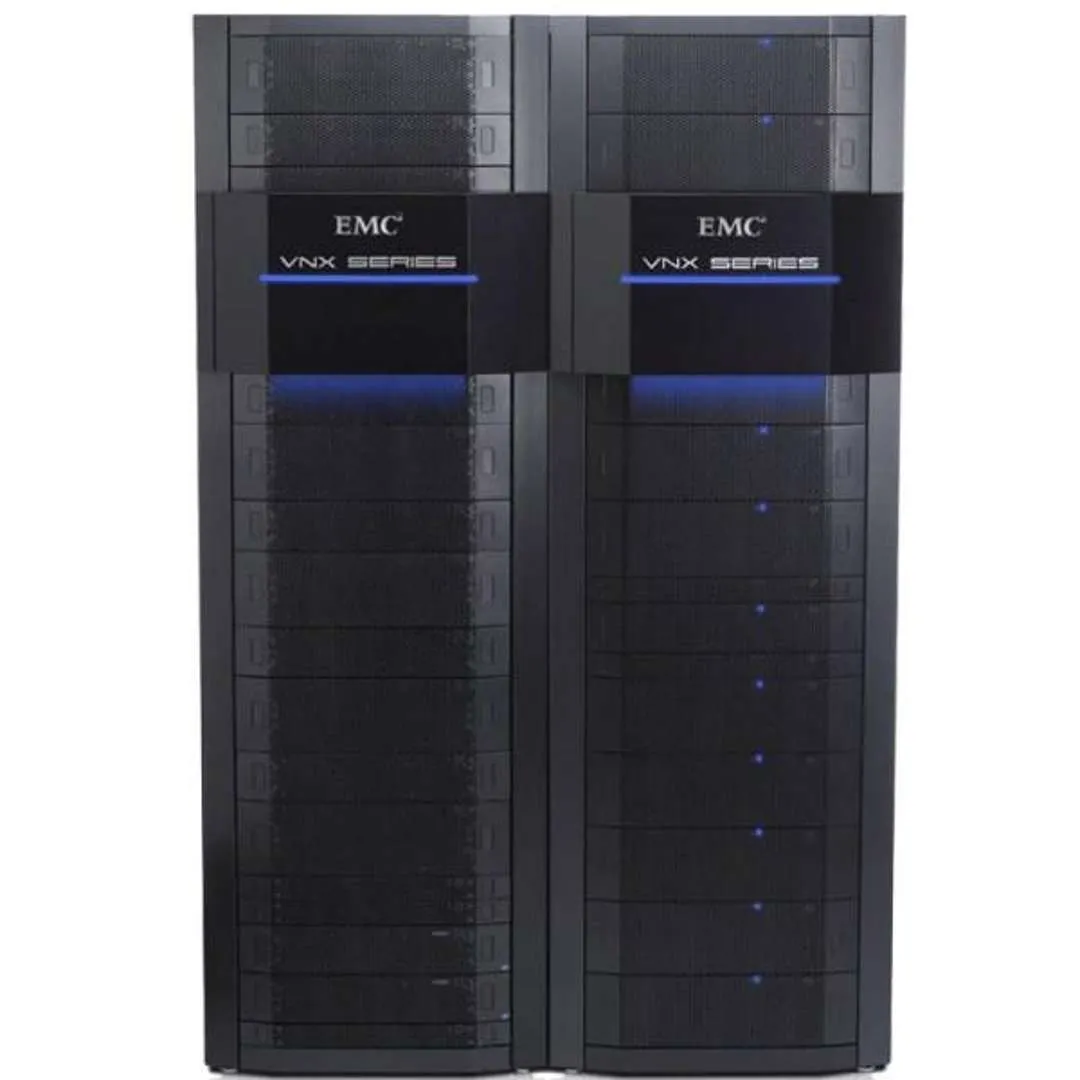

VNX7600 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX7600's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.
- DAE's: 15 x 3.5", 25 x 2.5", 60 x 3.5" and 120 x 2.5"
- 3.5" & 2.5" SAS / NL-SAS / Flash
- RAID 0 / 1 / 3 / 5 / 6 / 10
- Fibre Channel (FC)
- 1000 Max Disk Drives
EMC VNX7600 series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while providing market-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX7600 integrates hardware components for block, file and object with concurrent support for native NAS, iSCSI, Fibre Channel and FCoE protocols. The VNX7600 delivers file (NAS) functionality via 2-8 Data Movers and block (iSCSI, FCoE, and FC) storage via dual Storage Processors leveraging full 6Gbps SAS disk drive topology.
DELL EMC VNX7600 Base Knowledge.

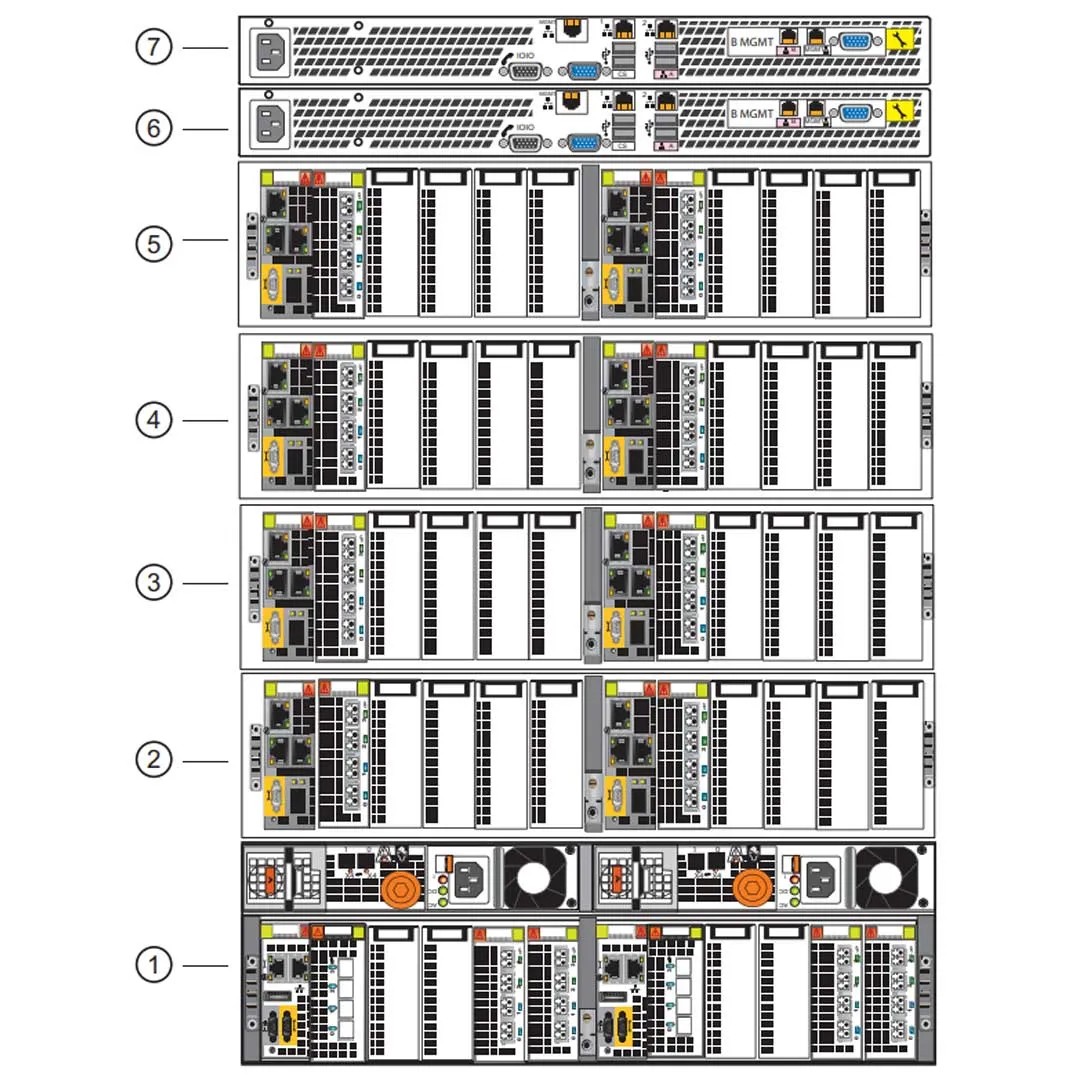

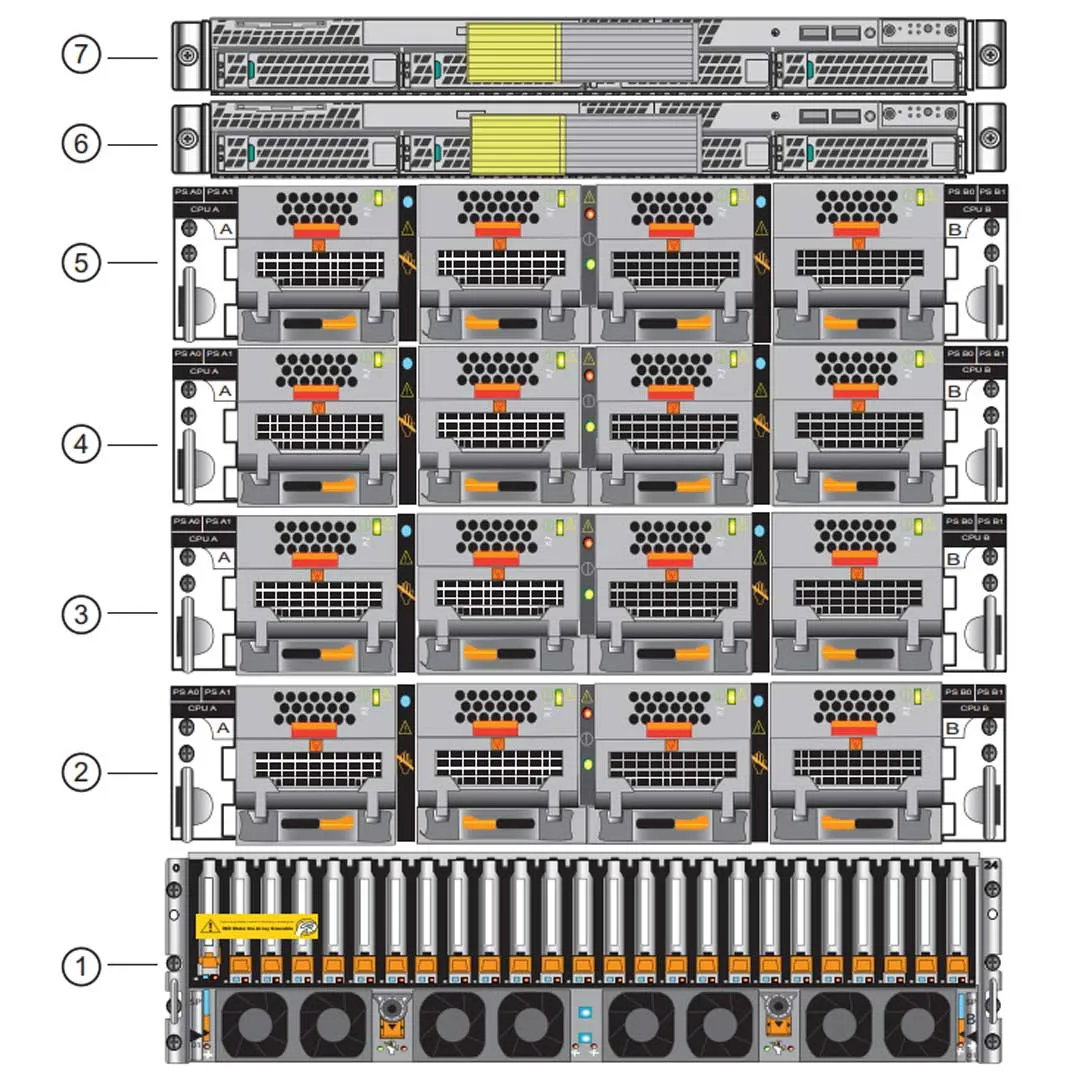

The VNX7600 can support up to 4 Data Mover Enclosures (DME’s). Each DME holds two Data Movers (DMs) Blades for a total of 16 DMs.
Form Factor:

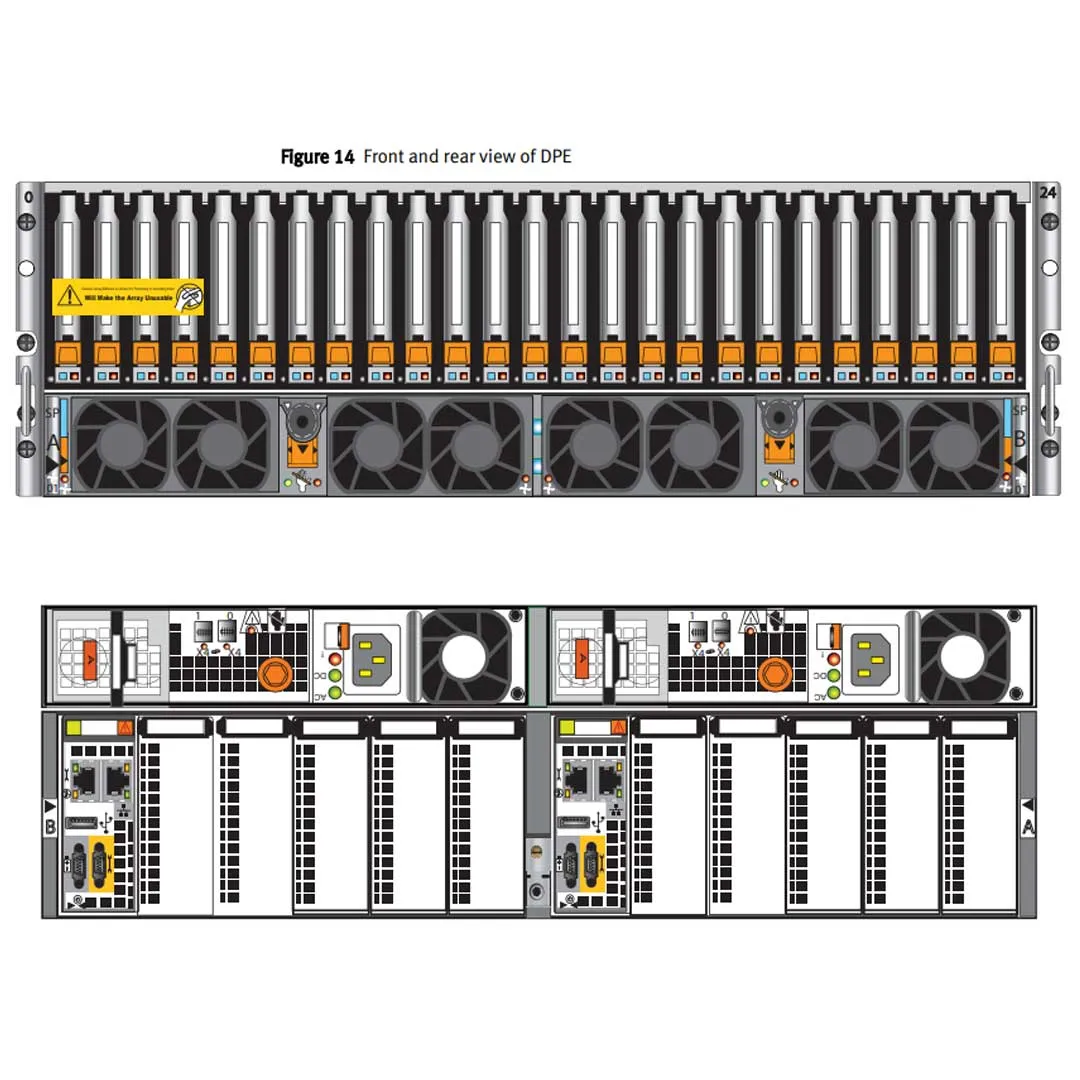

Chassis: 3U 25 (2.5”) | 3U 15 (3.5”)
Standby Power Supply: 1U PS
Disk Array Enclosures (DAE): 15x3.5” | 60x3.5” | 25x2.5” | 120x2.5”
Max Drives: 1000
Drives Supported: SAS, NL-SAS and Flash
I/O Supported:
Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object
Storage Processor I/O Supported:
2 x Intel Xeon E5-2600 8-Core 2.2 GHz/128 GB (block)
Data Movers Enclosure (DME):
2-8 Data Movers for file (Intel Xeon 5600 / 24 GB for each DM)
Control Station (CS):
Supports up to 2 Control Stations.
Disk Array Enclosure (DAE)
15x3.5”
60x3.5”
25x2.5”
120x2.5”
